Quick Install Garage Door Mount

Product Description

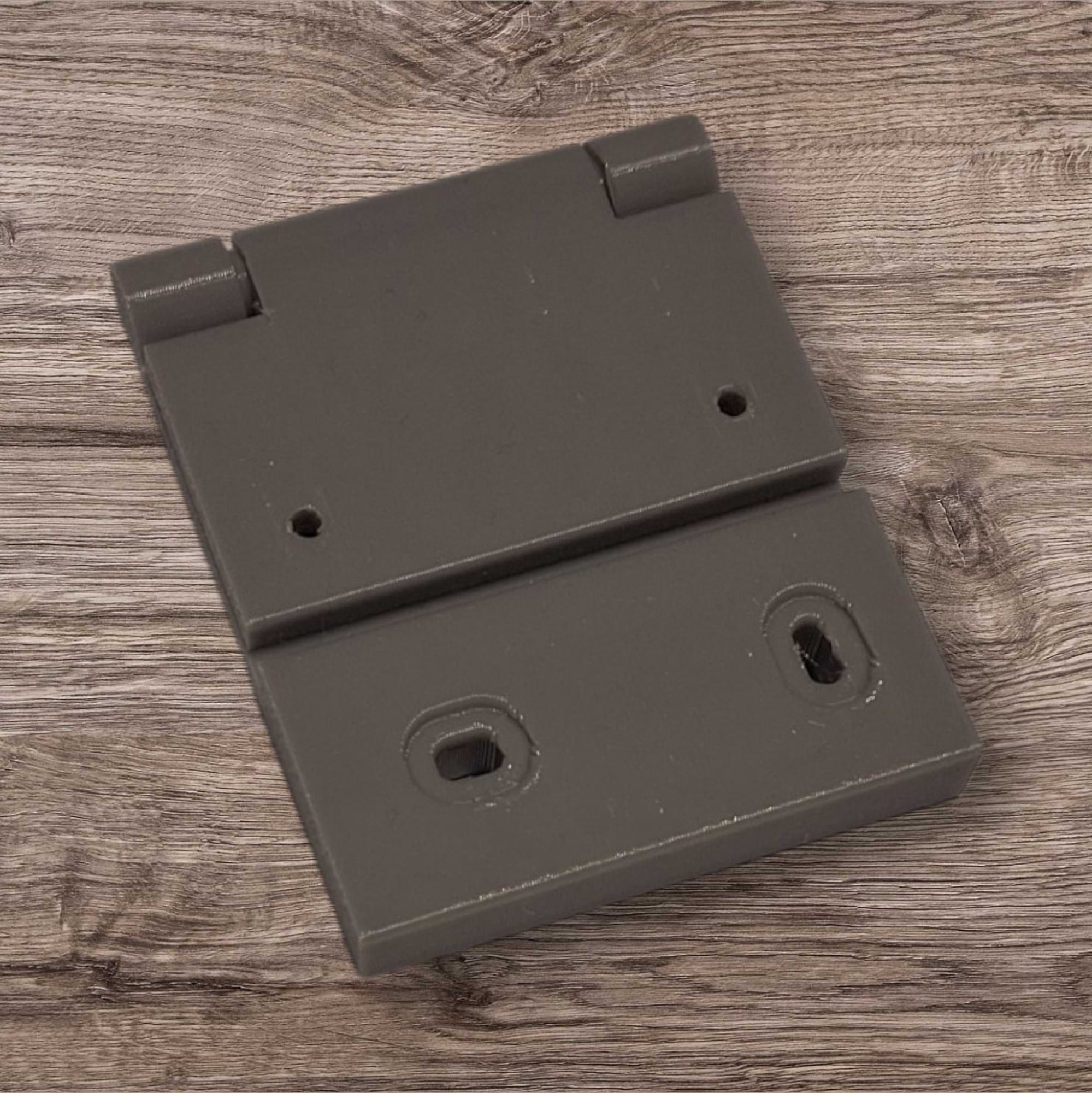

The Quick Install Mount for the Jablotron JA-151M/JA-155M is designed to securely mount the detector on a garage door, enabling reliable open/closed detection using gravity-assisted movement.

When the garage door opens, the bracket’s positioning allows the magnet to shift naturally due to gravity. This causes the magnetic contact to separate, instantly signaling the alarm system that the garage door is open. When the door closes, the magnet returns to its original position, restoring the closed status.

This solution eliminates complex custom mounting setups and provides a clean, professional installation specifically adapted for garage door applications.

Ideal for alarm installers who want a fast, reliable, and mechanically simple solution.

Key Features

• Designed specifically for the Jablotron JA-151M AND 155M

• Optimized for garage door installations

• Gravity-assisted magnet separation when the door opens

• Quick and secure mounting

• Clean, professional finish

• No modification required to the detector

• Durable and precisely manufactured bracket

How It Works

1. The JA-151M/JA-155M detector is mounted using the bracket onto the garage door.

2. In the closed position, the magnet remains aligned with the sensor.

3. When the door opens, gravity causes the magnet to move away.

4. The detector registers an open state and reports to the alarm system.

Simple physics. Reliable detection.

Important Notes

• Compatible with the Jablotron JA-151M/JA-155M wireless magnetic detector only.

• Detector and magnet are not included unless specified.

• Installation should be performed by a qualified installer.

• Always test correct alignment and signal communication after installation.

Installation instructions

1. Mount the magnet on the movable part using short screws
2. use 2 long screws to mount the detector and the bracket at the same time to the gate.
